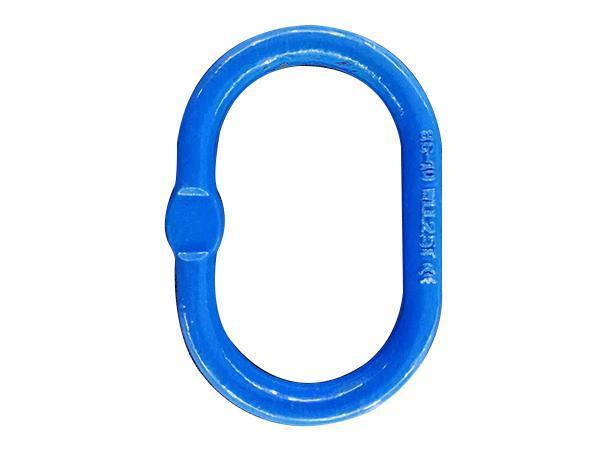

Alloy Steel Master Link

Ultimate load is 4 times the Working Load Limit.
For type 8-SLR1011-13 to 8-SLR1011-36, there will be pressing flat only on request.
For type 8-SLR1011-45 to 8-SLR1011-50: no pressing flat.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chains.
● The performance is increased by 25% compared with G80 products.
● Each workpiece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.

SLR1011 MASTER LINK
Parameters (Unit: mm)
Item Code G100 Chain Diametermm Weight (kg) Working load limit(t) Dimension (mm)
1 Leg Sling 2 Leg Sling A B D
8-SLR1011-13 6+7 6 0.34 2.3 110 60 13
8-SLR1011-16 8 7 0.53 3.5 110 60 16
8-SLR1011-18 10 8 0.86 5 135 75 18
8-SLR1011-23 13 10 1.6 7.6 160 90 23
8-SLR1011-27 16 13 2.46 10 180 100 27
8-SLR1011-33 19 16 4.14 14 200 110 33
8-SLR1011-36 22 19 6.22 25.1 260 140 36
8-SLR1011-45 26 22 12.85 30.8 340 180 45
8-SLR1011-50 32 26 16.22 40 350 190 50
SLR1013 MASTER LINK

● All sizes are forged.
● Large inside length.

Parameters (Unit: mm)
Item Code G100 Chain Diametermm Weight (kg) Working load limit(t) Dimension (mm)
1 Leg Sling 2 Leg Sling A B D
8-SLR1013-86 6/8 6 0.4 2.5 120 70 14
8-SLR1013-108 10 8 0.8 4 140 80 17
8-SLR1013-1310 13 10 1.5 7.5 160 95 22
8-SLR1013-1613 16 13 2.5 10 190 110 28
8-SLR1013-2016 19/20 16 5.2 17 240 140 34
8-SLR1013-2220 22/26 20/22 7.7 28 250 150 42

Ultimate load is 4 times the Working Load Limit.
All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.

SLR1014 G100 ULTRA-LARGE FORGED MASTER LINK

● All sizes are forged.
● Ultra-large dimension (big inside width and big inside length).

Parameters (Unit: mm)
Item Code G100 Chain Diametermm Weight (kg) Working load limit(t) Dimension (mm)
1 Leg Sling 2 Leg Sling A B D
8-SLR1014-108 8/10 8 3.7 4 340 180 25
8-SLR1014-1310 13 10 4.7 6.7 340 180 28
8-SLR1014-1613 16 13 7.1 10 340 180 34
8-SLR1014-2016 20 16 8.9 16 340 180 42

Ultimate load is 4 times the Working Load Limit.
All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.

SLR1012-G100 MASTER LINK ASSEMBLY

● All sizes: main ring is forged and sub-ring is welded.
● According to standard EN1677-4.

Parameters (Unit: mm)
Item Code G100 Chain Diameter mm Weight (kg) Working load limit (t) Dimension (mm)
For 3/4 Leg Sling A B D a b d
8-SLR1012-6 6MM 1.3 3 135 75 19 84 25 13
8-SLR1012-8 8MM 2.33 5.3 160 90 23 70 35 16.5
8-SLR1012-10 10MM 3.7 8 180 100 27 85 40 19
8-SLR1012-13 13MM 6.5 14 200 110 33 115 50 23
8-SLR1012-16 16MM 10.1 21.2 260 140 36 140 65 27
8-SLR1012-20 19/20MM 22.8 33.6 350 190 50 150 70 33
8-SLR1012-22 22MM 26 33.9 350 190 50 180 100 36

All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.

SLR-1015-G100 MASTER LINK ASSEMBLY

● All sizes: main ring is forged and sub-ring is welded.
● Larger sub-ring.

Parameters (Unit: mm)
Item Code Weight (kg) Working load limit (t) Breaking load (t) Dimension (mm)
A B D a b d
10-SLR1015-06 1.8 3.5 14 150 90 19 120 70 14
10-SLR1015-08 3.0 5 20 160 95 22 140 80 17
10-SLR1015-10 6.5 11.5 46 200 120 30 160 95 22
10-SLR1015-13 15 17 68 250 150 40 200 120 30
10-SLR1015-16 23 28 112 300 200 50 200 120 32

All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.
