Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: red RAL3020 yellow RAL1003.

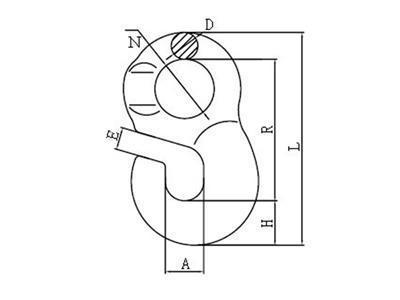

SLR119-G80 G HOOK
Ultimate load is 4 times the Working Load Limit.
| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±0.5 | N±1 | D±1 | H±1 | R±1.5 | E±0.3 | L±2 |
| 8-SLR119-10 | 0.51 | 3.15 | 12.6 | 20 | 32 | 14 | 22 | 76.5 | 12 | 113 |
| 8-SLR119-13 | 1.3 | 5.3 | 21.2 | 26 | 40 | 18 | 29 | 95.5 | 15 | 143.5 |
| 8-SLR119-16 | 1.9 | 8.0 | 32 | 32 | 50 | 22 | 35.5 | 117 | 18.4 | 176 |
| 8-SLR119-19 | 3.65 | 12.5 | 50 | 38 | 60 | 26 | 43 | 141 | 22 | 216.5 |
