Alloy Eye Shortening Grab Hook

The alloy eye shortening grab hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015.

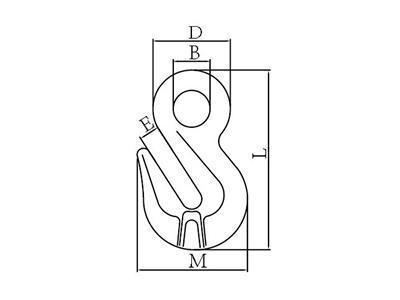

Parameters (Unit: mm)
Item code Weight (kg) Working load limit (t) Breaking load(t) E±1 B±1 D±1.5 M±2 L±3
10-SLR1008-06 0.2 1.4 5.6 8 14.5 30.5 43.5 71
10-SLR1008-08 0.28 2.5 10 10.8 18 37 53 91.5
10-SLR1008-10 0.72 4 16 13.5 22.5 48.5 72 127.5
10-SLR1008-13 1.6 6.7 26.8 16.5 28 59 96 163
10-SLR1008-16 2.45 10 40 19.2 36 74 112.5 183
10-SLR1008-20 4.72 16 64 24 43.5 89.5 143 227
10-SLR1008-22 8.2 19 76 27 48.5 100.5 160.5 260.5
