Features
● All the shackles and bolts are forged by special alloy steel with high intensity and high toughness, and then they are heat treated;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● The applicable temperature range: -40℃-200℃.
● It can not be used beyond the working load limit.

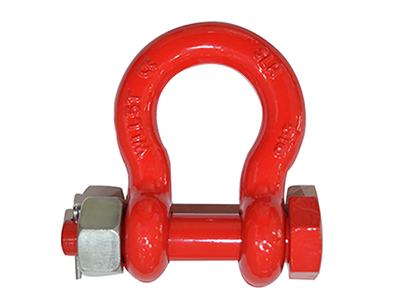

SLR756-G8 BOLT TYPE ALLOY BOW SHACKLE
Parameters (Unit: mm)
| Item Code |
Weight/lbs |
Working Load Limit/t |
Breaking Load/t |
A±1.5 |
C±1.5 |
D±1 |
L±3 |
N |
L1+3 |
B |
| SLR-756-5/16 |
0.22 |
1.2 |
6 |
13.5 |
21.3 |
8 |
53 |
9.5 |
50.5 |
8.4 |
| SLR-756-3/8 |
0.33 |
1.6 |
8 |
16.8 |
25.9 |
9.7 |
63.2 |
11 |
62 |
10.8 |
| SLR-756-7/16 |
0.49 |
2.5 |
12.5 |
19 |
29.5 |
11.2 |
74 |
13 |
70 |
12.8 |
| SLR-756-1/2 |
1.01 |
33.3 |
16.5 |
20.6 |
33.3 |
12.7 |
83.3 |
16 |
79.5 |
14.8 |
| SLR-756-5/8 |
1.60 |
5 |
25 |
27 |
42.9 |
17.5 |
106.4 |
19 |
101.5 |
18 |
| SLR-756-3/4 |
2.42 |
7 |
35 |
32 |
20.8 |
20.6 |
126.2 |
22 |
117.5 |
19.4 |
| SLR-756-7/8 |
3.95 |
9.5 |
47.5 |
36.6 |
57.9 |
24.6 |
148 |
25 |
136 |
21.5 |
| SLR-756-1 |
5.66 |
12.5 |
62.5 |
43 |
68.3 |
27 |
166.6 |
28 |
153.5 |
23.8 |
| SLR-756-1-1/8 |
8.27 |
15 |
75 |
46 |
74 |
31.75 |
190 |
32 |
171.5 |
25.6 |
| SLR-756-1-1/4 |
11.71 |
18 |
90 |
51.6 |
82.5 |
35 |
210 |
35 |
192 |
31 |
| SLR-756-1-3/8 |
15.83 |
21 |
105 |
57 |
92 |
36 |
232.7 |
38 |
202 |
33.4 |
| SLR-756-1-1/2 |
20.8 |
30 |
150 |
60.5 |
98 |
41 |
254 |
42 |
222 |
34 |
| SLR-756-1-3/4 |
33.91 |
40 |
200 |
73.2 |
126 |
57.2 |
313.7 |
51 |
278 |
38 |
| SLR-756-2 |
52.25 |
55 |
275 |
82.5 |
146 |
61 |
347.5 |
57 |
307 |
45 |
SLR757-G8 BOLT TYPE ALLOY BOW SHACKL
Parameters (Unit: mm)
| Item Code |
Weight/lbs |
Working Load Limit/t |
Breaking Load/t |
A±1.5 |
D±1 |
N |
L±3 |
L1+3 |
B |
| SLR-757-5/16 |
0.23 |
1.2 |
6 |
13.5 |
8 |
9.5 |
48.5 |
50.5 |
8.4 |
| SLR-757-3/8 |
0.33 |
1.6 |
8 |
16.8 |
9.7 |
11 |
58.4 |
62 |
10.8 |
| SLR-757-7/16 |
0.49 |
2.5 |
12.5 |
19 |
11.2 |
13 |
67.6 |
70 |
12.8 |
| SLR-757-1/2 |
0.75 |
3.3 |
16.5 |
20.6 |
12.7 |
16 |
77 |
79.5 |
14.8 |
| SLR-757-5/8 |
1.47 |
5 |
25 |
27 |
17.5 |
19 |
97.3 |
101.5 |
18 |
| SLR-757-3/4 |
2.52 |
7 |
35 |
32 |
20.6 |
22 |
116.6 |
117.5 |
19.4 |
| SLR-757-7/8 |
3.85 |
9.5 |
47.5 |
36.6 |
24.6 |
25 |
135.4 |
136 |
21.5 |
| SLR-757-1 |
5.55 |
12.5 |
62.5 |
43 |
27 |
28 |
152.4 |
153.5 |
23.8 |
| SLR-757-1-1/8 |
7.60 |
15 |
75 |
46 |
31.8 |
32 |
172.4 |
171.5 |
25.6 |
| SLR-757-1-1/4 |
10.81 |
18 |
90 |
51.6 |
35 |
35 |
190.5 |
192 |
31 |
| SLR-757-1-3/8 |
13.75 |
21 |
105 |
57 |
35 |
38 |
206.8 |
202 |
33.4 |
| SLR-757-1-1/2 |
18.5 |
30 |
150 |
60.5 |
41 |
42 |
230.1 |
222 |
34 |
| SLR-757-1-3/4 |
31.4 |
40 |
200 |
73.2 |
53.8 |
51 |
279 |
278 |
38 |
| SLR-757-2 |
46.75 |
55 |
275 |
82.5 |
61 |
57 |
324.6 |
307 |
45 |
Normal mark: G8 5/8 WLL5T CE SLR +BATCH NUMBER
SLR758-G8 BOLT TYPE ALLOY BOW SHACKL
Parameters (Unit: mm)
| Item Code |
Weight/lbs |
Working Load Limit/t |
Breaking Load/t |
A±1.5 |
C±1.5 |
D±1 |
N |
L±3 |
| SLR-758-5/16 |
0.19 |
1.2 |
6 |
13.5 |
21.3 |
8 |
9.5 |
53 |
| SLR-758-3/8 |
0.31 |
1.6 |
8 |
16.8 |
25.9 |
9.7 |
11 |
63.2 |
| SLR-758-7/16 |
0.38 |
2.5 |
12.5 |
19 |
29.5 |
11.2 |
13 |
74 |
| SLR-758-1/2 |
0.73 |
3.3 |
16.5 |
20.6 |
33.3 |
12.7 |
16 |
83.3 |
| SLR-758-5/8 |
1.37 |
5 |
25 |
27 |
42.9 |
17.5 |
19 |
106.4 |
| SLR-758-3/4 |
2.36 |
7 |
35 |
32 |
20.8 |
20.6 |
22 |
126.2 |
| SLR-758-7/8 |
3.62 |
9.5 |
47.5 |
36.6 |
57.9 |
24.6 |
25 |
148 |
| SLR-758-1 |
5.03 |
12.5 |
62.5 |
43 |
68.3 |
27 |
28 |
166.6 |
| SLR-758-1-1/8 |
7.41 |
15 |
75 |
46 |
74 |
31.75 |
32 |
190 |
| SLR-758-1-1/4 |
9.50 |
18 |
90 |
51.6 |
82.5 |
35 |
35 |
210 |
| SLR-758-1-3/8 |
13.53 |
21 |
105 |
57 |
92 |
36 |
38 |
232.7 |
| SLR-758-1-1/2 |
17.20 |
30 |
150 |
60.5 |
98 |
41 |
42 |
254 |
| SLR-758-1-3/4 |
27.78 |
40 |
200 |
73.2 |
126 |
57.2 |
51 |
313.7 |
| SLR-758-2 |
45.00 |
55 |
275 |
82.5 |
146 |
61 |
57 |
347.5 |
SLR759-G8 BOLT TYPE ALLOY BOW SHACKLE
Parameters (Unit: mm)
| Item Code |
Weight/lbs |
Working Load Limit/t |
Breaking Load/t |
A±1.5 |
D±1 |
L±3 |
N |
| SLR-759-5/16 |
0.17 |
1.2 |
6 |
13.5 |
8 |
48.5 |
9.5 |
| SLR-759-3/8 |
0.28 |
1.6 |
8 |
16.8 |
9.7 |
58.4 |
11 |
| SLR-759-7/16 |
0.43 |
2.5 |
12.5 |
19 |
11.2 |
67.6 |
13 |
| SLR-759-1/2 |
0.59 |
3.3 |
16.5 |
20.6 |
12.7 |
77 |
16 |
| SLR-759-5/8 |
1.25 |
5 |
25 |
27 |
17.5 |
97.3 |
19 |
| SLR-759-3/4 |
2.63 |
7 |
35 |
32 |
20.6 |
116.6 |
22 |
| SLR-759-7/8 |
3.16 |
9.5 |
47.5 |
36.6 |
24.6 |
135.4 |
25 |
| SLR-759-1 |
4.75 |
12.5 |
62.5 |
43 |
27 |
152.4 |
28 |
| SLR-759-1-1/8 |
6.75 |
15 |
75 |
46 |
31.8 |
172.4 |
32 |
| SLR-759-1-1/4 |
9.06 |
18 |
90 |
51.6 |
35 |
190.5 |
35 |
| SLR-759-1-3/8 |
11.63 |
21 |
105 |
57 |
35 |
206.8 |
38 |
| SLR-759-1-1/2 |
15.95 |
30 |
150 |
60.5 |
41 |
230.1 |
42 |
| SLR-759-1-3/4 |
26.75 |
40 |
200 |
73.2 |
53.8 |
279 |
51 |
| SLR-759-2 |
42.31 |
55 |
275 |
82.5 |
61 |
324.6 |
57 |
