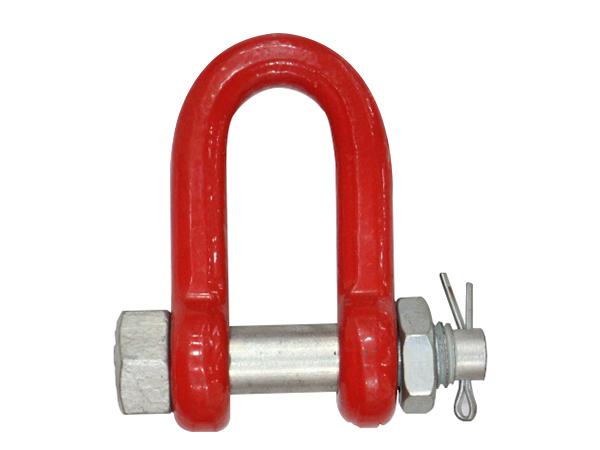

G80 Alloy Steel Shackles

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with EN818-2.G80 chains which can meet the standard
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: Red RAL3020 / Yellow RAL1003.
● It can not be used beyond the working load limit.

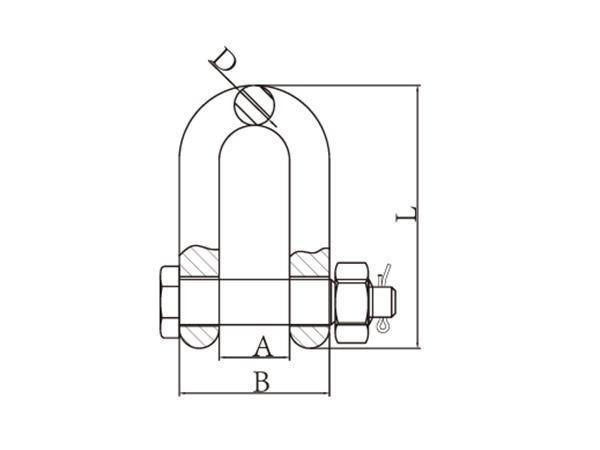

Parameters (Unit: mm)
Item Code Weight (kg) Working Load Limit/t Breaking Load/t A±1.2 B±2 D±0.5 L±2
8-SLR049-7/8 0.14 2 8 15 32 9 56
8-SLR049-10 0.274 3.15 12.6 21 43 11.5 71
8-SLR049-13 0.5 5.3 21.2 25 51 14.5 91
8-SLR049-16 0.89 8 32 30 63 17.5 111

Ultimate load is 4 times the Working Load Limit.
Normal mark: 10-8 WLL3.15T CE SLR +BATCH NUMBER
