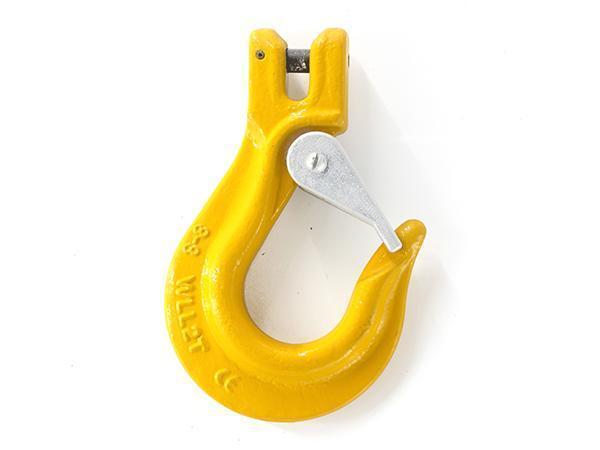

SLR014 Alloy Steel Clevis Sling Hook

Parameters (Unit: mm)
Item No Weight
(kg) 		Woring load
limit(t) 		Breaking
load(t) 		A±0.5 E±2 B±1.5 H±1 K±2 L±2.5
8-SLR014-6/7 0.55 1.6 6.4 8 24 36 28 100 144
8-SLR014-7 0.72 1.6 6.4 9 28 37.5 32 105 153
8-SLR014-8 0.91 2 8 10 30 42 32.5 117 168
8-SLR014-10 1.42 3.15 12.6 12 32 50 41 128 191.5
8-SLR014-13 3.3 5.3 21.2 15 40 60 49 177 254.5
8-SLR014-16 4.9 8 32 18.5 55 67 48.5 222 289

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Contact us for the parameters of this type.
