Features
● It can not be used for lifting. It can only be used for forest logging.
● Ultimate load is 4 times the Working Load Limit.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

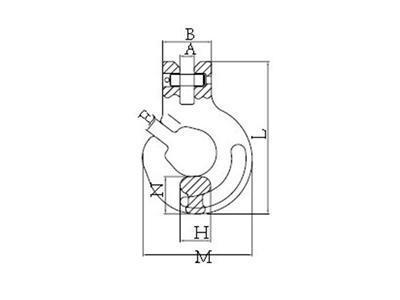

| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | B±1.2 | A±0.5 | E±0.5 | H±1 | M±2 | N±0.5 | L±2 |
| 8-SLR102-6 | 0.413 | 1.12 | 4.48 | 31 | 8.5 | 8.5 | 18 | 66.5 | 24.5 | 83 |
| 8-SLR102-7/8 | 0.413 | 2 | 8 | 35 | 9.5 | 10.5 | 18 | 72.7 | 22.2 | 95.5 |
| 8-SLR102-10 | 0.92 | 3.15 | 12.6 | 44 | 13 | 13 | 22 | 97 | 33.5 | 137 |
| 8-SLR102-13 | 1.75 | 5.3 | 21.2 | 53 | 15 | 16 | 30 | 119 | 40 | 165 |
