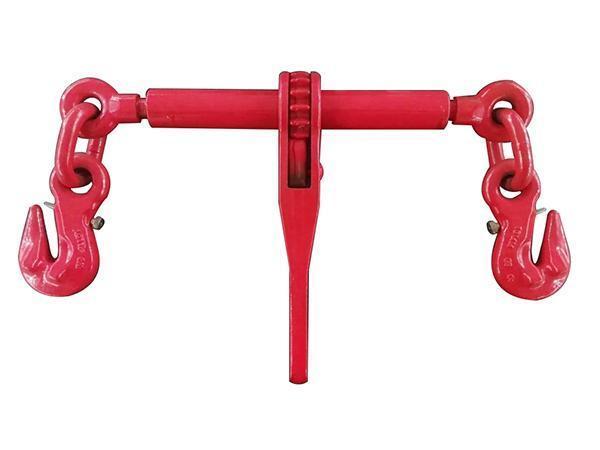

Ratchet Chain Load Binder with Safety Hooks

Features
(G80 EYE GRAB HOOK WITH WELD ON RING AND STOP PIN)
● It meets the standard of EN12195-3.
● The handle is forged.
● It can be matched with G80 chains.
● It is a G80 eye grab hook with stop pin to prevent falling off.
● It can only be used for lashing but not lifting.
● Color code: red RAL3020 / Yellow RAL1003.

We can also provide matched clevis clutch for customers.

Parameters (Unit: mm)
Item Code Weight (kg) Load Capacity/kn Bbreakign Force/kn A B H Lmin Lmax L
8-8 3.18 40 80.4 50 25 92 340 500 210
10-8 5.30 63 126 50 25 118 365 525 280
13-8 8.40 100 212 72 30 146.5 365 525 355
16-8 8.80 160 322 72 32 178 390 550 355
