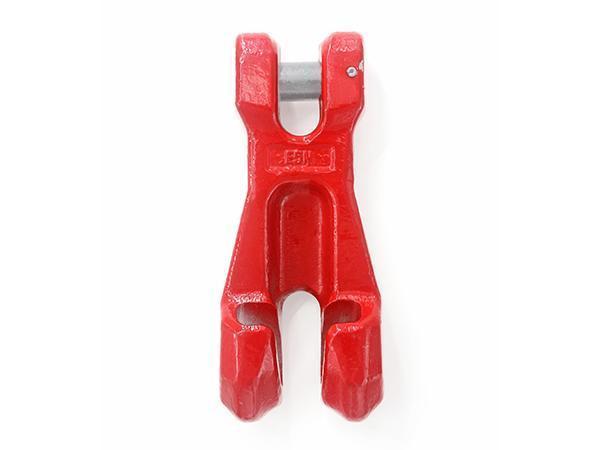

Alloy Steel Clevis Shortening Clutch

Ultimate load is 4 times the Working Load Limit.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified. Surface treatment:
● Color code: red RAL3020/yellow RAL1003.

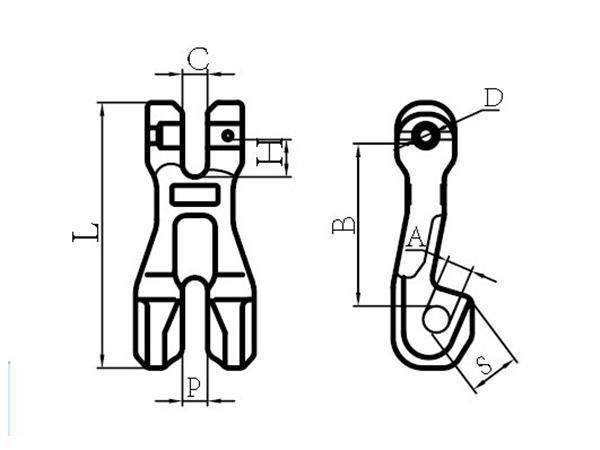

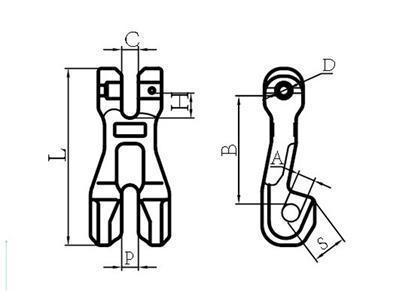

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) P±0.5 C±0.5 A±0.3 B±2 H±1 S±0.3 L±2 D±0.5
8-SLR073-06 0.17 1.12 4.48 7.5 7.5 8 44 10.3 12 73.5 7.8
8-SLR073-7/8 0.37 2 8 9.5 9.5 10.5 61.7 14 17 101 9.2
8-SLR073-10 0.97 3.15 12.6 13 13 12.4 92 18.4 28 138 13.2
8-SLR073-13 2.01 5.3 21.2 16.5 16.5 16 115 22.7 34.5 177 16.2
8-SLR073-16 3.32 8 32 21 21 19.5 143 28.5 40 220 20
8-SLR073-20 6.2 12.5 50 23.5 23.5 23 152 33.6 46 238 24.3
8-SLR073-22 8.5 15 60 25.5 25.5 26 195 39 57.5 295 28.1
