Alloy Steel Self Locking Eye Hook

After the opening of the hook, there is a design to ensure that the hook will not be closed before load bearing. So the operation is more convenient and safer.
We designed an obvious concave curve to protect the finger.

SLR737-G80 IMPROVED SELF LOCKING EYE HOOK

● Ultimate load is 4 times the Working Load Limit.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

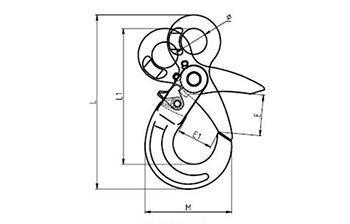

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) Φ±1 E±2 E1±2 L1±3 L±3
6-8 0.5 1.12 4.48 21 35 28 110 141
7/8-8 0.88 2 8 25 40 35 136 175
10-8 1.58 3.15 12.6 34.5 50 45 168 214
13-8 3.0 5.3 21.2 40 60 52.5 207 268
16-8 5.9 8 32 50 65 63.3 254 332
18/20-8 7.0 12.5 50 64.5 80 86 274.5 332
22-8 12.3 15 60 70 83 76 319 415
26-8 20 21.2 84.8 80 106 96 362 472
32-8 44 31.5 126 105 140 133 470 614
SLR755-G80 IMPROVED SWIVEL SELF LOCKING HOOK

Ultimate load is 4 times the Working Load Limit.

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1 B±1 E±2 E1±2 L1±3 L±3
6-8 0.71 1.12 4.48 32.5 24 35 28 152.5 184
7/8-8 1.15 2 8 36 29.5 40 35.8 189 228
10-8 1.86 3.15 12.6 42 35 50 48 224 270
13-8 3.51 5.3 21.2 50 41 60 52.5 267 324
16-8 7.33 8 32 61 56.8 65 63.3 355.6 406
18/20-8 10.3 12.5 50 72 63 80 86 378.2 460.5
22-8 17.5 15 60 97 98 83 76 466 564
26-8 23 21.2 84.8 123 115 106 96 544 661
32-8 81 31.5 126 140 146 140 135 679 892
SLR738-G80 IMPROVED CLEVIS SELFLOCK HOOK
Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1 B±1 E±2 E1±2 L1±3 L±3
6-8 0.44 1.12 4.48 8 32 35 28 96 131
7/8-8 0.8 2 8 9.5 38.5 40 35.8 119.3 161.8
10-8 1.38 3.15 12.6 12.5 46 50 45 142 195
13-8 2.81 5.3 21.2 15 59 60 52.5 179 249
16-8 6 8 32 18.5 77 65 63.3 224.8 310
18/20-8 7.25 12.5 50 25 77 80 86 238.3 335
22-8 12.8 15 60 25 97.5 83 76 277 392
26-8 21.8 21.2 84.8 30 118 106 96 321 450
32-8 49.6 31.5 126 35 150 140 135 416 589.6
