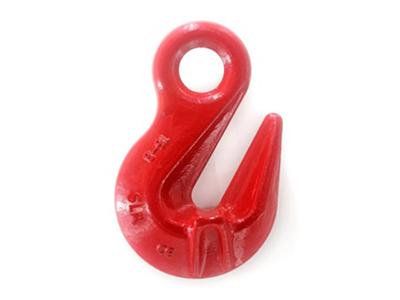

Alloy Steel Eye Shortening Grab Hook

Features
● Forged super alloy steel- Quenched and Tempered.
● Suitable for EN818-2 G80 chain.
● Individually proof test at 2.5 times Working Load Limit.
● Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
● Breakage test.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code:Red RAL3020 / Yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.
● Above Working Load Limit is based on side pull.

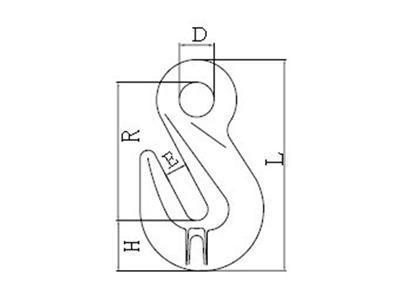

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) E±0.5 D±1 H±1 R±2 L±2
8-SLR085-06 0.14 1.12 4.48 8 13.5 17.9 51.4 75.3
8-SLR085-7/8 0.245 2 8 10.8 18 20 61.5 91.2
8-SLR085-10 0.65 3.15 12.6 13 20 29 80 122
8-SLR085-13 1.39 5.3 21.2 16.5 26 42.8 99.7 158
8-SLR085-16 2.2 8 32 20 30.5 47.7 104 169
8-SLR085-20 4.6 12.5 50 25 37.5 56 140 219
8-SLR085-22 8.2 15 60 28 44 68 165 259
8-SLR085-26 9.8 21.2 84.8 30 44 77 188.8 298
8-SLR085-32 19.4 31.5 126 38 57 95 228 361
