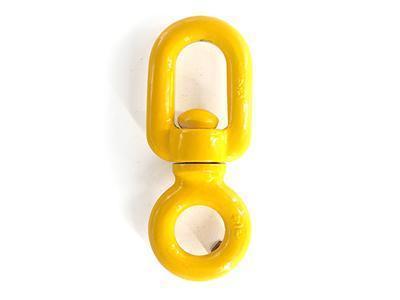

Alloy Steel Forged Swivels

Ultimate load is 4 times the Working Load Limit.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Parameters (Unit: mm)
Item Code Weight (kg) A±1 B±0.5 C±1 D±0.5 D1±0.5 L±2
SLR-224-9/16 0.58 41 29.5 30.5 15 14 158
SLR-224-5/8 0.85 45 34 34.5 16 16 176.5
SLR-224-3/4 1.39 51 38 38 20 19 201.5
